Digital Twin Editor - Metadata

Introduction

The Metadata tab (known before as the Part Catalog editor) has joined the new Digital Twin Editor tool.
The metadata tab enables the creation and modification of the parts catalog.

Getting Started

Open the Digital Twin editor

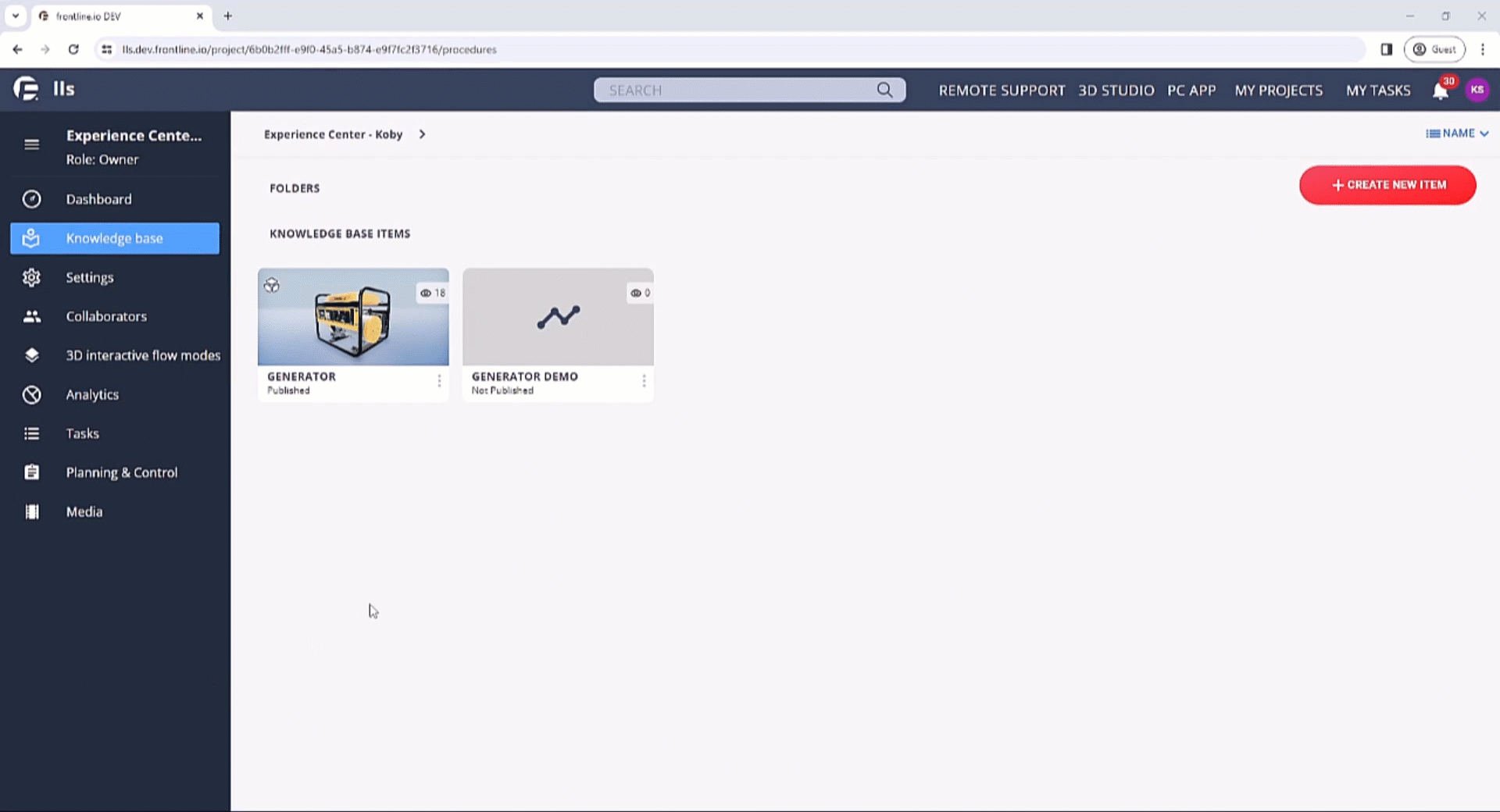

1. Open the Digital Twin dashboard (on the web) and click on the Digital Twin editor.

2. Digital twin editor will open in the frontline.io PC app, and then open the second tab: metadata.

Note: The Digital Twin editor can be accessed only in the PC app via the Web.

Edit the Metadata

1. Clicking on the desired part will open the parts catalog form

   inside you will have several fields to fill if needed.

2. Edit properties (meta-data) of the part (or assemblies)

• Name (changes in original and new)

• Catalog\ID number (changes in original and new)

• Spare part assembly yes/ no (default) (changes in original and new)

• Additional info field (changes in original and new)

• Visibility: Displayed (Default) or Hidden from the list and the digital twin.


Group parts assembly

• Grouping can be done only on a single assembly

• Once grouped there will be a "grouped" icon near the part name on the Catalog and near the part title in the properties window, while editing.

  • The group icon in the Catalog will behave like a collapse arrow.

• Grouped parts will be displayed in grey in the list and will be non-selectable while editing. Grouped parts can be edited by ungrouping the grouped parts.

Saving After Editing

Changes done will automatically be saved and the saved version will be displayed every time any content creator opens the Part Catalog Builder for the specific Digital Twin.

To see the changes made, the Digital Twin must be published in the digital twin scene.

Publishing

1. Publish the Digital Twin item to view the changes

   When creating a new digital twin item the hierarchy that is uploaded will be duplicated

   For example:

   • The original hierarchy - CAD assemblies (CAD)

   • The new hierarchy - Parts Catalog (PC)

2. Parts Catalogs: Parts Catalog and CAD Assemblies


How do I see the changes?

In the Digital twin scene, the MetaData button will open the metadata window pop-up window, containing information about the part/ assembly as defined in the properties of the metadata tab. The window is a pop-up that needs to be closed to keep on interacting with what is displayed underneath.

Any click outside the window will close it

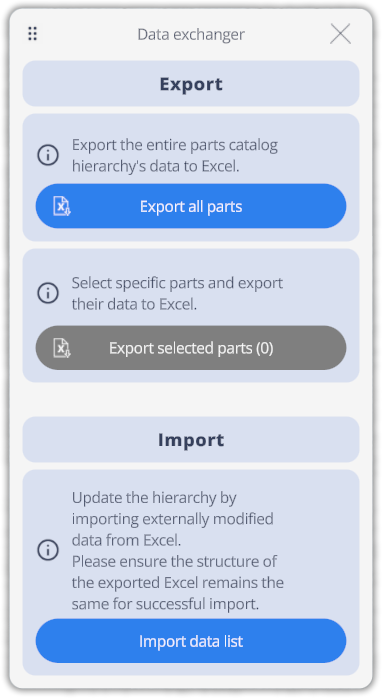

Data Exchanger

You can export your part catalog list to an Excel file, this is something you already know.
We added a new feature, Import.

After you export the list, you can edit it inside your Excel.

Example of the part list:

Hierarchy	Name	Catalog Id	Is it a spare part	additional info	Is Grouped	Visibility
0	Generator	12133	False		False	Displayed
1 -	AirFilter	12348	False		False	Displayed

Same as inside the parts catalog editor, you can change the info inside the table.

from the naming throughout the visibility of the part inside the digital twin.

After finishing editing, you can save your work and import it back to the frontline app.

Conclusion

To wrap up, the Metadata Tab is your tool for creating and adjusting parts catalogs. This guide showed how to edit parts: open the tab, modify properties, group parts, save changes, publish, and edit metadata. Once edited, changes are automatically saved and visible to all users. Remember, publishing the Digital Twin item is essential to view changes. By following these steps, you'll seamlessly enhance your Digital Twin experience, making sure your edits are seen by everyone.
